Getting started

On Linux, run the executable "chimera" in the bin directory of your Chimera installation. If Chimera is installed in /usr/local/chimera, run /usr/local/chimera/bin/chimera from a shell.

On Windows, start Chimera by doubleclicking the Chimera icon in the directory called bin in your Chimera installation. If Chimera is installed in \Program Files the executable will be in the directory \Program Files\Chimera\bin. By default, a Chimera icon will also be placed on your desktop.

On Mac, start the Apple X server found in /Applications/Utilities/X11, then doubleclick the Chimera application to start. The X server is necessary for running Chimera on the Mac. It is not automatically included in the Mac OS, but can be downloaded (as freeware) from Apple.

A basic Chimera window should appear after a few seconds. Chimera includes a number of tools and dialogs that can be present on the screen at the same time. The basic Chimera window provides the main interactive workspace for displaying and manipulating structures. The default Chimera graphics window is pretty small, so if you like, resize the main Chimera window by placing the cursor on any corner and dragging with the left mouse button.

Now open a structure. If 1zik.pdb was downloaded to your machine, choose the menu item File→Open. Locate the file 1zik.pdb in the resulting dialog and open it (the File type should be set to all (guess type) or PDB). If you want to fetch directly from the PDB instead, choose File→Fetch by ID and type 1zik in the PDB ID field. The structure will appear in the main graphics window; it is a leucine zipper formed by two peptides.

Side View

Scaling and clipping operations can be performed with the Side View. There are several ways to start this tool; one is to choose Tools→Viewing Controls→Side View from the menu. By default, the Side View is also listed in the Favorites menu. The Side View shows a tiny version of the structure.

Within the Side View, try moving the eye position (the small square; scales the view) and the clipping plane positions (vertical lines) with the left mouse button. The Side View will renormalize itself after movements, so that the eye or clipping plane positions may appear to "bounce back" after you have adjusted them; however, your adjustments have been applied to the main display.

Using the mouse

Default Mouse Button Assignments

Mouse button	Modifier	Action
Btn1 (left button)		Rotation
Btn2 (middle button)		XY Translation
Btn3 (right button)		Scaling
Btn1	Ctrl	Picking (selection)
Btn1	Ctrl-Shift	Addition to (removal from) selection

Try manipulating the structure in the main window with the mouse. By default, the left mouse button controls rotation, the middle mouse button controls XY translation, and the right mouse button controls scaling. On a Mac with a one-button mouse, the middle and right buttons can be emulated by combining mouse action with the option and (apple) keys, respectively.

Continue moving and scaling the structures with the mouse in the graphics window and Side View as desired throughout the tutorial.

In combination with the control (Ctrl) key, the mouse buttons have additional functions. By default, picking from the screen (a type of selection) is done by clicking on the atom or bond of interest with the left mouse button (Btn1) while holding down the Ctrl key. To add to an existing selection, also hold down the Shift key. The selection is highlighted in green, and its contents are reported on the button near the lower right corner of the graphics window.

You can also drag out a selection area with Ctrl-Btn1 (sweep out an area before releasing). All atoms and bonds within that area will be selected. As before, Ctrl-Shift-Btn1 can be used to add to an existing selection, either by clicking or by dragging.

The arrow keys can be used to broaden, narrow, or invert a selection. Chimera maintains a hierarchy of objects from atoms to residues to chains to models. If an atom is selected, the ↑ key will broaden the selection to the residue containing that atom. If an entire residue is selected, the ↑ key will broaden the selection to the chain containing that residue. If a chain is selected, the ↑ key will broaden the selection to the entire model. Similarly, the selection scope can be narrowed using the ↓ key. The → key inverts the selection so that selected atoms become deselected and vice versa.

Spend some time selecting various parts of the model. An easy way to deselect everything is to use Ctrl-Btn1 in any blank space in the graphics window.

Actions Menu Items

Menu Item	Description
Atoms/Bonds	Controls the display and representation of atoms and bonds.
Ribbon	Controls the display and representation of ribbons.
Surface	Controls the display and representation of molecular surfaces.
Color	Colors selected objects. Color target can be limited to object types indicated by the radio buttons.
Label	Labels selected atoms. The residue submenu labels residues containing the selected atoms.
Focus	Focuses the view on the selected atom(s), zooming and translating if necessary.
Set Pivot	Sets the center of rotation based on the selected atom(s) without adjusting the view.
Target	Restricts target of the action to certain selected or unselected object types.
Inspect	Launches the Selection Inspector.
Write List	Writes a list of the currently selected objects to a parsable text file.
Write PDB	Writes the coordinates of the currently selected atoms to a PDB file.

Selection/Action

In general, operations performed with the Chimera Actions menu affect the current selection. Selections can be made in many ways, including with the Select menu or with the mouse (as described above). When nothing is selected, the Actions menu applies to everything.

The current selection is highlighted in green in the structure(s) and its contents are reported on the button near the lower right corner of the graphics window.

Changing the display

To simplify the display, use Actions→Atoms/Bonds→hide to undisplay the model followed by Actions→Atoms/Bonds→chain trace only to display only the chain trace. The chain trace includes just the α-carbons (atoms named CA), connected in the same way that the residues are connected.

Next, thicken the lines to make them more visible:

    Actions→Atoms/Bonds→wire width→3

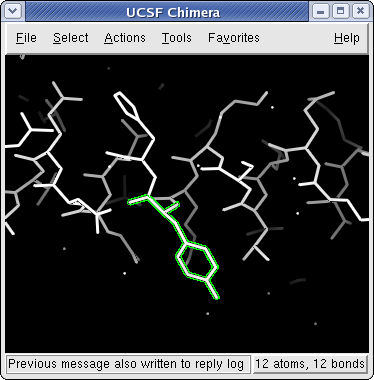

Try picking two α-carbons, one from each peptide (using Ctrl-Btn1 for the first, Ctrl-Shift-Btn1 for the second). Label the atoms you have selected, first by atom name and then by residue name and number:

    Actions→Label→name
    Actions→Label→off
    Actions→Label→residue→name + specifier

Each residue label is of the form:

    res_name res_number.chain

It is now evident that one peptide is chain A, and the other is chain B. To deselect the atoms, pick in a region of the graphics window away from any atoms or use the menu item Select→Clear Selection.

Undisplay the residue labels:

    Actions→Label→residue→off

Color the two chains different colors:

    Select→Chain→A
    Actions→Color→cyan

Repeat the process to color chain B yellow. As described above, another way to select an entire chain is to pick an atom or bond in the chain and then hit the ↑ key twice, once to expand the selection to the entire residue and another time to expand it to the entire chain.

There is actually another "chain" in this model, not currently displayed: water. This chain ID was assigned automatically when the structure was read in.

    Select→Chain→water
    Actions→Atoms/Bonds→show

Alternatively, the water could have been selected using Select→Structure→solvent or Select→Residue→HOH

To display all atoms of the A chain only:

    Select→Clear Selection
    Actions→Atoms/Bonds→hide
    Select→Chain→A
    Actions→Atoms/Bonds→show

Then to show the backbone only,

    Actions→Atoms/Bonds→backbone only

Only the A chain's backbone is displayed because the A chain was selected when the action was performed.

To display all the atoms and color them according to element:

    Select→Clear Selection
    Actions→Atoms/Bonds→show

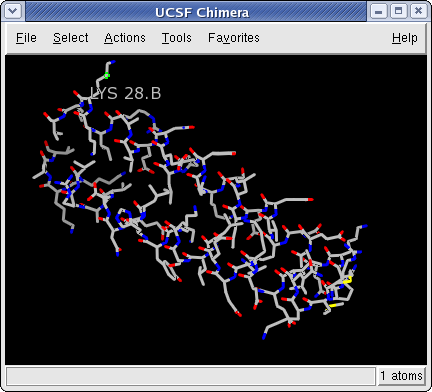

    Actions→Color→by element

Models and model status

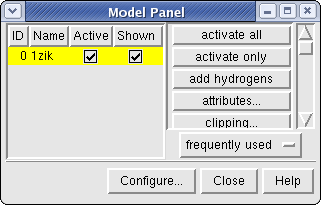

Generally, each file of coordinates opened in Chimera becomes a model with an associated model ID number. Models are assigned successive numbers, starting with 0 (zero). The Model Panel shows the current models and enables many operations upon them. Open this tool with Tools→General Controls→Model Panel.

A checkbox in the Active column of the Model Panel shows that the model is activated for motion; unchecking the box makes it impossible to move. Checking the box again restores the movable state. Make sure the line for 1zik.pdb (or 1zik) is highlighted on the left side of the Model Panel (if not, click on it) and then click close in the list of functions on the right side. Use the Close button at the bottom to close the Model Panel.

Go on to Part 2 below, or terminate the Chimera session. A Chimera session may be ended using File→Quit.

With Chimera started and the Side View opened as described at the beginning of Part 1, open a different structure. If 6bna.pdb was downloaded to your machine, choose the menu item File→Open. Locate the file 6bna.pdb in the resulting dialog and open it (the File type should be set to all (guess type) or PDB). If you want to fetch directly from the PDB instead, choose File→Fetch by ID and type 6bna in the PDB ID field. The structure contains the molecule netropsin bound to double-helical DNA.

Thicken the lines to make them more visible:

    Actions→Atoms/Bonds→wire width→3

Color the different nucleotides different colors. For example, color the adenosine residues (adenine nucleotides) blue:

    Select→Residue→A
    Actions→Color→blue

Analogously, color cytosine nucleotides (C residues) cyan, guanine nucleotides (G residues) yellow, and thymine nucleotides (T residues) magenta. Clear the selection by using Select→Clear Selection or picking in a region of the graphics window away from any atoms.

Rotate, translate, and scale the structure as needed to get a better look (see Using the mouse to review how this is done). Continue moving and scaling the structure as desired throughout the tutorial. There are still many white atoms, including the netropsin molecule in the minor groove of the DNA and water. Undisplay the water:

1. pick one of the white dots with Ctrl-Btn1 (the white dots are water oxygens; if you cannot see them, first change to a stick representation with Actions→Atoms/Bonds→stick)
2. hit the ↑ key once to expand the selection to the entire "chain" water; only one click is needed because the picked atom is equivalent to an entire residue
3. Actions→Atoms/Bonds→hide

Representations and labels

Before proceeding, clear the selection. Otherwise, the water will remain selected, potentially causing confusion when menu Actions have no visible affect (they affect only the selection, currently the invisible waters).

    Select→Clear Selection

Now that nothing is selected, the Actions menu will affect everything. Try some different molecular representations. They can be translated, rotated, and scaled interactively. Multiple representation types can be combined with each other and with surfaces (more on surfaces below).

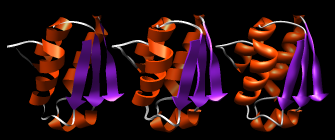

    Actions→Ribbon→show
    Actions→Ribbon→round
    Actions→Ribbon→hide

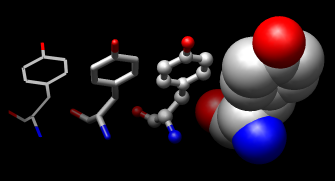

    Actions→Atoms/Bonds→stick
    Actions→Atoms/Bonds→sphere

Change the representation of only one of the DNA strands, chain B:

    Select→Chain→B
    Actions→Atoms/Bonds→stick
    Select→Clear Selection

Next, change everything to a ball-and-stick representation:

    Actions→Atoms/Bonds→ball & stick

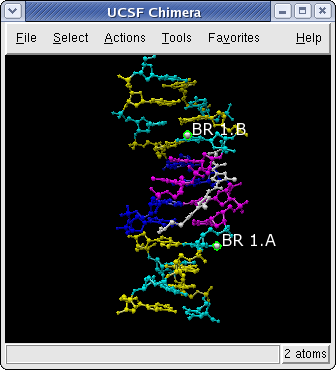

In this representation, pick one of the atoms in the white netropsin molecule. Label the residue,

    Actions→Label→residue→name + specifier

showing that it is named NT and is part of chain het (assigned automatically when the structure was read in). The residue label might not be near the selected atom. Remove the residue label:

    Actions→Label→residue→off

The first submenu under Label controls individual atom labels, while the second controls residue labels. Actions→Label→name would have shown the name of the atom instead of the name of the residue.

Two white atoms that are not part of netropsin are displayed. They are apparently attached to cytosines, which were previously colored cyan. Pick the two atoms and label their residues,

    Actions→Label→residue→name + specifier

showing that one DNA strand is chain A, the other strand is chain B, and each strand contains a brominated cytosine. Use Select→Clear Selection to deselect the atoms, then undisplay the residue labels:

    Actions→Label→residue→off

Surfaces

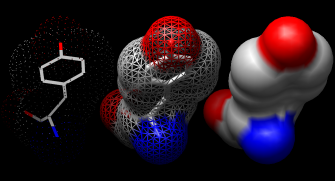

Finally, have some fun with molecular surfaces. There are built-in categories within structures such as main and ligand; when nothing is selected, Actions→Surface→show displays the surface of main. Surfaces can be translated, rotated, and scaled interactively.

    Actions→Surface→show
    Actions→Surface→hide
    Select→Structure→ligand
    Actions→Surface→show
    Actions→Surface→mesh

By default, a surface has the same color as the corresponding atoms; however, surface color can be specified separately. To change the surface color only of netropsin only (which is still selected):

1. change the coloring target: Actions→Color→surfaces
2. Actions→Color→red

3. restore the default coloring target: Actions→Color→all of the above


Clear the selection, change back to a solid surface, and then undisplay the surface.

    Select→Clear Selection
    Actions→Surface→solid
    Actions→Surface→hide

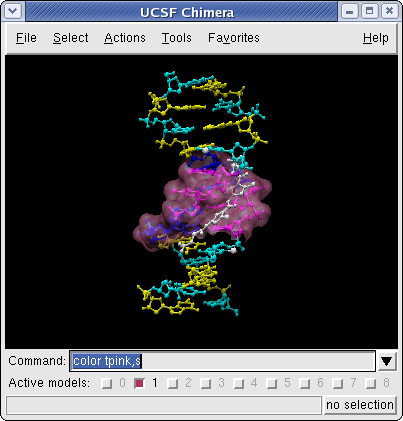

As an example of a more complicated selection process, show the surface of the adenine and thymine nucleotides in chain B only:

1. change the selection mode: Select→Selection Mode→append
2. Select→Residue→A
3. Select→Residue→T
4. change the selection mode: Select→Selection Mode→intersect
5. Select→Chain→B
6. Actions→Surface→show

To prepare for any subsequent operations, restore the selection mode and clear the selection:

    Select→Selection Mode→replace
    Select→Clear Selection

The command line (Tools→General Controls→Command Line) equivalent is much more concise, but requires some knowledge of the atom specification syntax:

Command: surf :a.b,t.b

Sometimes it is helpful to make a solid surface transparent:

    Actions→Surface→transparency→50%

Choose File→Quit from the menu to terminate the Chimera session.

Front image how-to (menu)

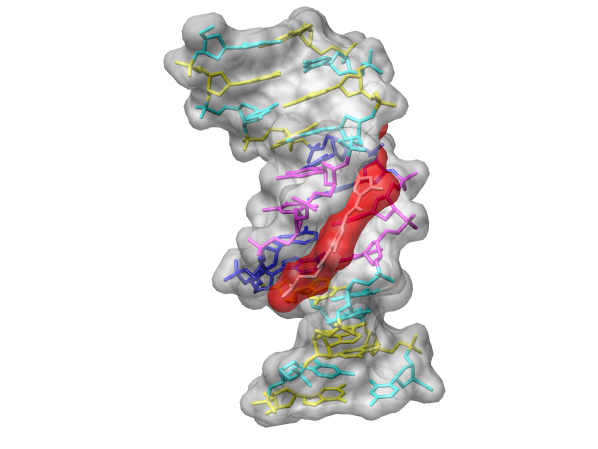

Here are the steps to recreate the image at the front of the tutorial:

1. Read in 6bna.pdb (or fetch 6bna)
2. Set the representation to "stick":
• Actions→Atoms/Bonds→stick
3. Undisplay the waters:
   • Select→Chain→water
   • Actions→Atoms/Bonds→hide
4. Color the residues:
   • Select→Residue→A
   • Actions→Color→blue
   • Select→Residue→C
   • Actions→Color→cyan
   • Select→Residue→G
   • Actions→Color→yellow
   • Select→Residue→T
   • Actions→Color→magenta
   • Select→Clear Selection
5. Add a surface to the DNA, color the surface light gray, and make surfaces transparent:
   • Actions→Surface→show
   • Actions→Color→surfaces
   • Actions→Color→light gray
   • Actions→Surface→transparency→50%
6. Add a surface to netropsin, color the surface red (it will already be transparent):
   • Select→Structure→ligand
   • Actions→Surface→Show
   • Actions→Color→red
   • Select→Clear Selection
7. Rotate and translate as desired
8. Change the background to white:
• Actions→Color→background
• Actions→Color→white
• Actions→Color→all of the above
9. Save the image:
• File→Save Image

Getting started

On Linux, run the executable "chimera" in the bin directory of your Chimera installation. If Chimera is installed in /usr/local/chimera, run /usr/local/chimera/bin/chimera from a shell.

On Windows, start Chimera by doubleclicking the Chimera icon in the directory called bin in your Chimera installation. If Chimera is installed in \Program Files the executable will be in the directory \Program Files\Chimera\bin. By default, a Chimera icon will also be placed on your desktop.

On Mac, start the Apple X server found in /Applications/Utilities/X11, then doubleclick the Chimera application to start. The X server is necessary for running Chimera on the Mac. It is not automatically included in the Mac OS, but can be downloaded (as freeware) from Apple.

Show the Command Line with Tools→General Controls→Command Line. By default, the Command Line tool is also listed in the Favorites menu.

Opening a structure

A local file can be opened from the command line if it is in the working directory (or if the entire pathname is entered):

Command: open 1zik.pdb

If the file has been downloaded but is not in the working directory, use File→Open instead, as described in Part 2.

Alternatively, to fetch directly from the PDB, use the command:

Command: open 1zik

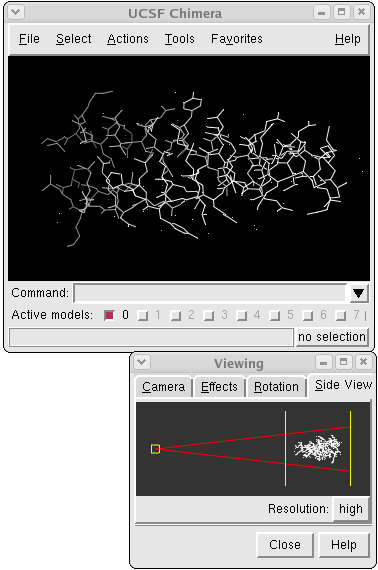

The structure will appear in the main graphics window; it is a leucine zipper formed by two peptides.

Side View

Scaling and clipping operations can be performed with the Side View. There are several ways to start this tool; one is to choose Tools→Viewing Controls→Side View from the menu. By default, the Side View is also listed in the Favorites menu. The Side View shows a tiny version of the structure.

Within the Side View, try moving the eye position (the small square; scales the view) and the clipping plane positions (vertical lines) with the left mouse button. The Side View will renormalize itself after movements, so that the eye or clipping plane positions may appear to "bounce back" after you have adjusted them; however, your adjustments have been applied to the main display.

Using the mouse

Try manipulating the structure in the main window with the mouse. By default, the left mouse button (Btn1) controls rotation, the middle mouse button (Btn2) button controls XY translation, and the right mouse button (Btn3) controls scaling. On a Mac with a one-button mouse, the middle and right buttons can be emulated by combining mouse action with the option and (apple) keys, respectively.

Continue moving and scaling the structures with the mouse in the graphics window and Side View as desired throughout the tutorial.

In combination with the control (Ctrl) key, the mouse buttons have additional functions. By default, picking from the screen (a type of selection) is done by clicking on the atom or bond of interest with the left mouse button (Btn1) while holding down the Ctrl key. To add to an existing selection, also hold down the Shift key. The selection is highlighted in green, and its contents are reported on the button near the lower right corner of the graphics window.

The arrow keys can be used to broaden (↑), narrow (↓), or invert (→) a selection. The hierarchy for broadening and narrowing selections contains atoms, residues, chains, and models, in that order. When a selection is inverted, the selected atoms become deselected and vice versa.

Spend some time selecting various parts of the model. An easy way to deselect everything is to use Ctrl-Btn1 in any blank space in the graphics window.

Command/Target

A Chimera command may include arguments and a target (or atom specification). For example, in the following color command,

Command: color hot pink :lys

hot pink is an argument that specifies a color name, and the target :lys specifies all residues named LYS. (To see the built-in colors and their names, choose Actions→Color→all colors from the menu.)

If no target is specified, the command acts on all applicable items. For example,

Command: color hot pink

would color all atoms, bonds, ribbons, and molecular surfaces hot pink.

Unlike the Actions menu, commands do not automatically act on the current selection. However, the current selection can be specified as the target of a command with the word selected, sel, or picked.

The command help can be used to show the manual page for any command. For example,

Command: help color

shows the manual page for the command color. The Chimera Quick Reference Guide lists all of the commands and gives some examples of atom specification. It can be accessed by choosing Help→Tutorials from the Chimera menu and clicking the "Chimera Quick Reference Guide" link.

Changing the display

To simplify the display:

Command: chain @ca

This command shows only the atoms named CA (α-carbons) and connects them in the same way that the residues are connected. Next, thicken the lines:

Command: linewidth 3

Try picking two α-carbons, one from each peptide (using Ctrl-Btn1 for the first, Ctrl-Shift-Btn1 for the second). Label the atoms you have selected:

Command: label sel

The label command shows atom information (atom name, by default). Undisplay the atom labels, then show labels for the residues containing the selected atoms:

Command: ~label
Command: rlabel sel

Each residue label is of the form:

res_name res_number.chain

It is now evident that one peptide is chain A, and the other is chain B. To deselect the atoms, pick in a region of the graphics window away from any atoms or use the menu item Select→Clear Selection. Undisplay the residue labels:

Command: ~rlabel

Color the two chains different colors:

Command: color cyan :.a
Command: color yellow :.b

There is actually another "chain" in this model, not currently displayed: water. This chain ID was assigned automatically when the structure was read in.

Command: disp :.water

displays the water (only the oxygens are visible in the X-ray structure);

Command: show :.a

gets rid of everything except the A chain, but displays all of its atoms;

Command: chain :.a@n,ca,c

shows the backbone of the A chain only. If the chain specification ":.a" had been omitted, then the backbones of both chains would have been displayed.

Command: disp
Command: color byelement

displays all the atoms and colors them according to element.

Models and model status

Generally, each file of coordinates opened in Chimera becomes a model with an associated model ID number. Models are assigned successive numbers, starting with 0 (zero). The Active models line in the Command Line tool shows which models are activated for motion. The checkbox for 0 (currently the leucine zipper) is activated. Unchecking the box makes it impossible to move model 0. Checking the box again restores the movable state.

Command: close 0

closes the model. Go on to Part 2 below, OR terminate the Chimera session. A Chimera session may be ended using the following command:

Command: stop

Setup

With Chimera started and the Command Line and Side View opened as described at the beginning of Part 1, open a different structure. If 6bna.pdb was downloaded to your machine, choose the menu item File→Open. Locate the file 6bna.pdb in the resulting dialog and open it (the File type should be set to all (guess type) or PDB). Alternatively, fetch the structure directly from the PDB:

Command: open 6bna

The structure contains the molecule netropsin bound to double-helical DNA. Thicken the lines to make them more visible:

Command: linewidth 3

Color the different nucleotides different colors, specifying them by residue name:

Command: color blue :a
Command: color magenta :t
Command: color yellow :g
Command: color cyan :c

Rotate, translate, and scale the structure as needed to get a better look (see Using the mouse to review how this is done). Continue moving and scaling the structure as desired throughout the tutorial. There are still many white atoms, including the netropsin molecule in the minor groove of the DNA and water. Undisplay the water:

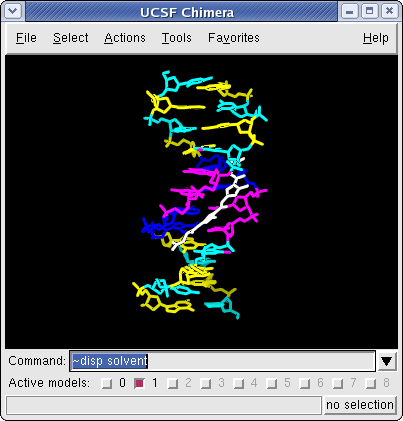

Command: ~disp :.water
-OR- (these are equivalent)
Command: ~disp solvent

Representations and labels

Next, try some different molecular representations. They can be translated, rotated, and scaled interactively. Multiple representation types can be combined with each other and with surfaces (more on surfaces below).

Command: ribbon
Command: ribrepr round
Command: ~ribbon
Command: represent stick
Command: repr sphere
Command: rep stick :.b

The latter command changes only chain B to the stick representation, with the rest remaining in the sphere representation.

Note that commands (but not their keyword arguments) can be truncated to unique identifiers. For example, the command represent can be shortened to repr or rep but not re (because other commands also start with re), whereas the keywords stick, sphere, etc. cannot be truncated.

Next, change everything to a ball-and-stick representation:

Command: repr bs

In this representation, pick one of the atoms in the white netropsin molecule. Label the residue,

Command: rlabel picked

showing that it is named NT and is part of chain het (assigned automatically when the structure was read in). The residue label might not be near the selected atom. Remove the residue label:

Command: ~rlabel

Two white atoms that are not part of netropsin are displayed. They are apparently attached to cytosines, which were previously colored cyan. Pick the two atoms and label their residues,

Command: rla picked

showing that one DNA strand is chain A, the other strand is chain B, and each strand contains a brominated cytosine. Use Select→Clear Selection to deselect the atoms, then undisplay the residue labels:

Command: ~rla

Surfaces

Finally, have some fun with molecular surfaces. There are built-in categories within structures such as main and ligand; when nothing is specified, surface shows the surface of main. Surfaces can be translated, rotated, and scaled interactively.

Command: surface
Command: ~surface
Command: surface ligand

-OR- (these are equivalent)
Command: surface :nt
-OR-
Command: surface :.het

By default, a surface has the same color as the corresponding atoms; however, surface color can be specified separately:

Command: surfrepr mesh
Command: color red,s ligand
Command: surfrepr solid
Command: ~surf
Command: surf :a.b,t.b
Command: surf :a,t
Command: color green,s :t

Sometimes it is helpful to make a solid surface transparent. One way to do this is to define a transparent color and then use the new color in a command:

Command: colordef tpink 1. .5 .7 .4
Command: color tpink,s

The numbers in the colordef command refer to red, green, blue, and opacity components, respectively.

Use the command stop to terminate the Chimera session.

Front image how-to (commands)

Here are the steps to recreate the image at the front of the tutorial:

1. Fetch 6bna:
   • Command: open 6bna
2. Set the representation to "stick":
   • Command: repr stick
3. Undisplay the waters:
   • Command: ~disp solvent
4. Color the residues:
   • Command: color blue :a
   • Command: color cyan :c
   • Command: color yellow :g
   • Command: color magenta :t
5. Add a surface to the DNA, color the surface transparent light gray:
   • Command: surf
   • Command: colordef tgray .827 .827 .827 .5
   • Command: color tgray,s
6. Add a surface to netropsin, color the surface transparent red:
   • Command: surf ligand
   • Command: colordef tred 1 0 0 .5
   • Command: color tred,s ligand
7. Rotate and translate as desired
8. Change the background to white:
   • Command: set bg_color white
9. Save the image:
   • Command: copy png file ~/Desktop/myfile.png
