RBVI's "Visualization Vault"

vizvault photo 1
Our Research Center has created a special room for viewing high-definition images of macromolecular structures in 3-D using stereoscopic glasses. We call it our "Viz Vault." It's ideal for demonstrating the interactive visualization and analysis software that we develop, and for collaborative science projects with other researchers.
vizvault photo 2

Virtual Reality

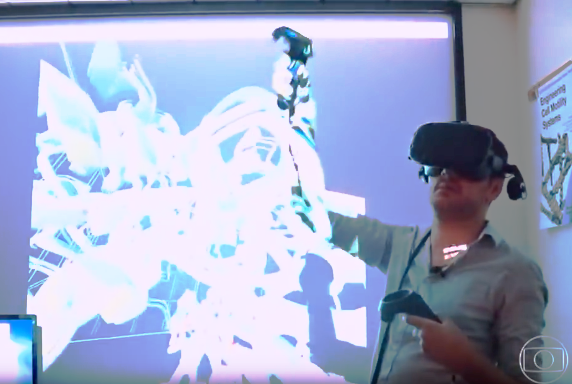

The Viz Vault is also equipped with an HTC Vive virtual reality headset for immersive views of molecular structures, 3D light microscopy and electron microscopy using our ChimeraX VR software. The user sees holographic room-size atomic models and microscopy data, and can literally walk through the data to ideal vantage points and analyze the data using tracked hand controllers for clicking on objects in the scene. The headset is powered by an NVIDIA Quadro P6000 graphics card.
vizvault photo 3

Stereoscopic Projector

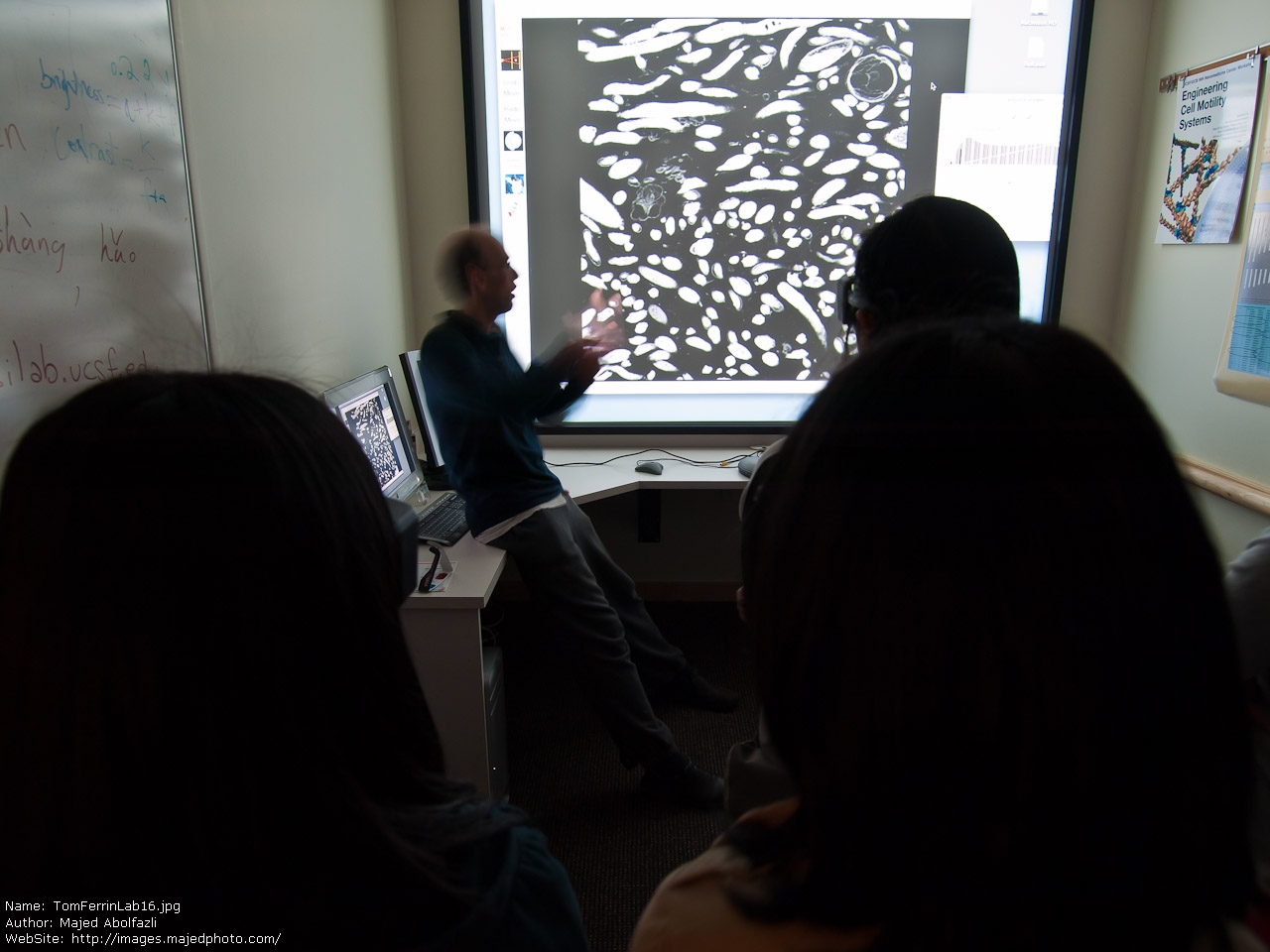

The Viz Vault uses a Christie Digital Mirage S+4K video projector (1400x1050 resolution) capable of 120Hz vertical refresh rate. The fast vertical refresh allows images to be displayed at 120 frames per second. For viewing stereoscopic 3-D images, a slightly different image is projected every other frame. The projector is coupled to an infrared (IR) emitter which floods the room with invisible IR light during one of these frames, but not the other. Users then don a pair of liquid crystal "shutter" glasses such as RealD's CrystalEyes 4S with lens that alternately turn opaque, first for one eye and then for the other eye. The glasses are synchronized to the different images from the projector via the IR light beam, and the result is that the user perceives a three-dimensional image that appears to be floating in space in front of the projector screen. A workstation running Windows 10 and a NVIDIA Quadro P6000 graphics card with hardware stereo synchronization drives the system.
vizvault photo 4
Both VR and stereoscopic viewing are especially useful for understanding the complex spatial relationships inherient in large molecular structures such as viruses, proteins, and nucleic acids, and the details of these relationships are often critical to understanding how these molecules deliver their biological function.

Individual scientists may not need as elaborate a system as what's described here, and instead may wich to consider interactively viewing stereoscopic 3-D molecular models on their desktops using devices such as the NVIDIA 3D Vision.
