What does DNA look like?

Tom Goddard
June 9, 2010
Demo for Celsius and Beyond summer camp

computer generated image No microscope is powerful enough to see the DNA helix, so we look at models.

Watson & Crick model made from metal rods, 1953.

computer generated image A dream "home" computer imagined in 1950 when DNA structure solved. Molecular visualization was 20 years in the future.
computer generated image computer generated image computer generated image
computer generated image computer generated image computer generated image
Today molecule models are usually viewed on computers.
  • Small double-stranded DNA in Chimera, 1BNA.
  • Representations: slabs, sphere, ball and stick, stick, wire, surface.
  • Standard atom colors: white carbon, blue nitrogen, red oxygen, orange phosphorous.
  • Which one does it really look like?
  • Sphere style is maybe most realistic.
  • Fly down axis (ctrl-middle button drag).
computer generated image DNA in cells is wrapped around a spool (PDB 1AOI) called a nucleosome.
  • Just 2 turns are wrapped on each spool.
  • Millions of spools are in each chromosome.
computer generated image DNA spools are stacked to make filaments.

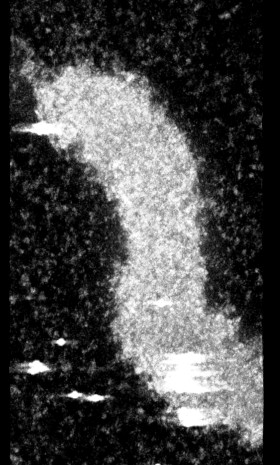

computer generated image Electron microscopy -- fly chromosome tomography.
  • Maximum intensity projection.
  • Rock.
computer generated image

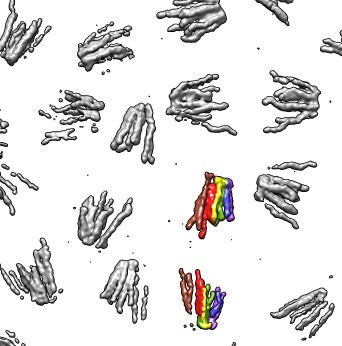

Dividing cells seen with light microscopy.

  • show time series, stereo glasses.
  • Fly (drosophila) has 4 pairs of chromosomes, but one pair is too small to see.
  • Reduce z size to 0.15 um for better appearance.
  • yuri...cmm colors each cell, but apparently with 0.5 um z grid, color range 10
  • arms.cmm colors chromosomes of one cell, color range 1, z grid 0.15 um.
  • use "cache 30 renderings" to improve speed.

Show virus paper strip RNA, explain human DNA paper strip would fill entire room tightly packed.
