Looking Glass support

[colin.gauvin@…]

The following bug report has been submitted:
Platform:        macOS-26.0.1-arm64-arm-64bit
ChimeraX Version: 1.10.1 (2025-07-24 20:15:27 UTC)
Description
Hello,

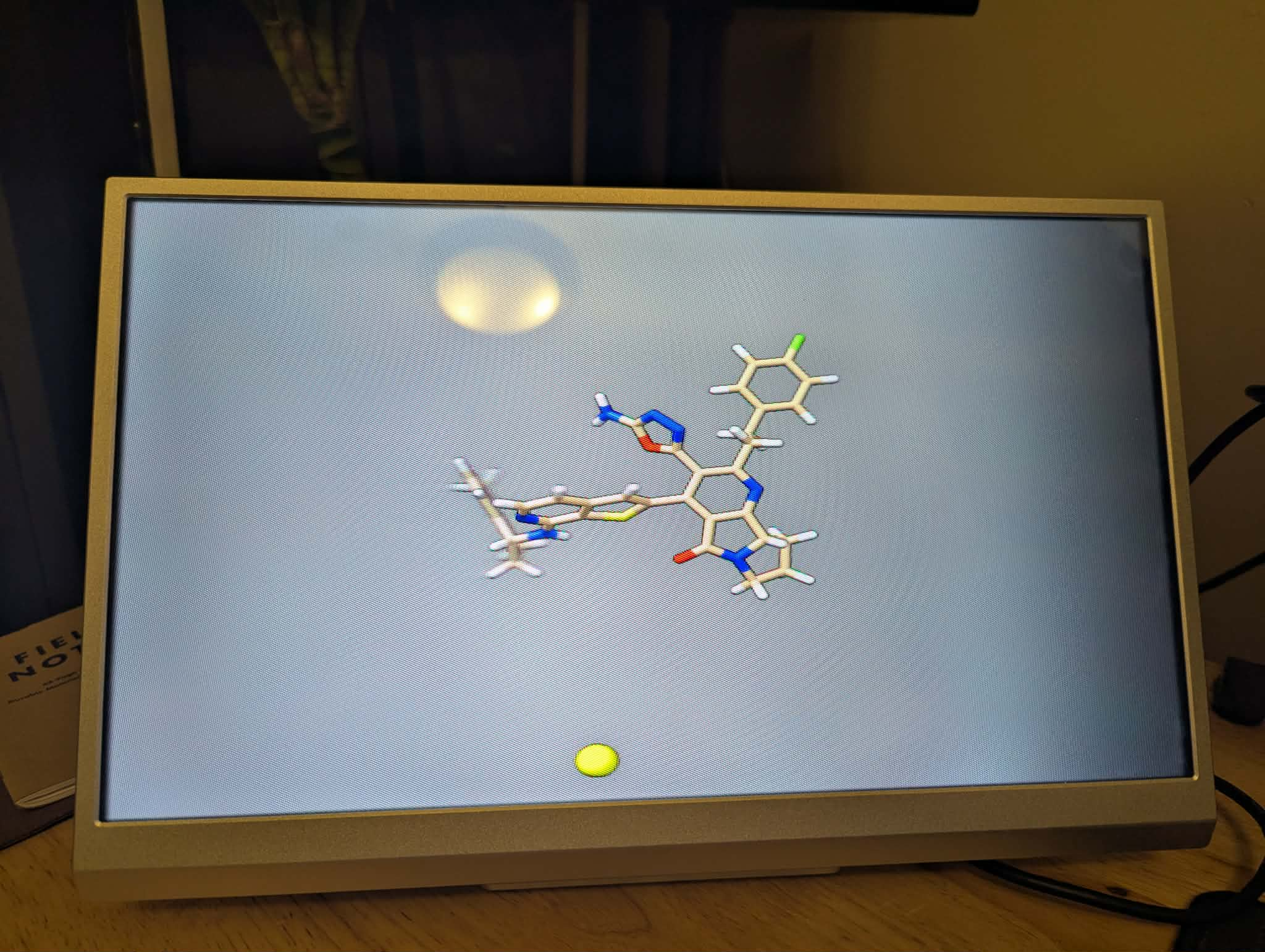

I'm working on adding Looking Glass support for modern LG displays to ChimeraX. While I have everything working/displaying in 3D, the non-3D display flickers quite a bit as a result of what I believe is a potential bug.

Specifically, when rendering a quilted tile like is necessary with LG displays, and having some sort of outline (selection outline or silhouettes), the renderer only blits the scene to tile 0,0 while the silhouettes seem to go to 0-47 properly. This results in a very dim/imperceptible image. I think the reason it works without outlines is that we rendering directly to the quilt, but as soon as there is an outline, we must be rendering through the framebuffer, so I suspect that what is happening is that in copy_from_framebuffer, GL.glBlitFramebuffer has hard-coded (0,0) coordinates, which means only tile 0 ever gets the actual rendered scene.

I can work around this by disabling silhouettes/outlines before rendering to LG display, but this introduces a flicker on the main display as we are in a constant state of re-drawing with and without outlines/silhouettes, especially when using something like ISOLDE where selection is constantly updating and new selection outlines are being drawn.

Best,
Clin

OpenGL version: 4.1 Metal - 90.5
OpenGL renderer: Apple M4 Max
OpenGL vendor: Apple

Python: 3.11.4
Locale: en_US.UTF-8
Qt version: PyQt6 6.8.1, Qt 6.8.2
Qt runtime version: 6.8.2
Qt platform: cocoa
Hardware:

    Hardware Overview:

      Model Name: MacBook Pro
      Model Identifier: Mac16,6
      Model Number: Z1FG000AULL/A
      Chip: Apple M4 Max
      Total Number of Cores: 16 (12 performance and 4 efficiency)
      Memory: 64 GB
      System Firmware Version: 13822.1.2
      OS Loader Version: 13822.1.2

Software:

    System Software Overview:

      System Version: macOS 26.0.1 (25A362)
      Kernel Version: Darwin 25.0.0
      Time since boot: 6 minutes, 35 seconds

Graphics/Displays:

    Apple M4 Max:

      Chipset Model: Apple M4 Max
      Type: GPU
      Bus: Built-In
      Total Number of Cores: 40
      Vendor: Apple (0x106b)
      Metal Support: Metal 4
      Displays:
        MEG 342C OLED:
          Resolution: 3440 x 1440 (UWQHD - Ultra-Wide Quad HD)
          UI Looks like: 3440 x 1440 @ 175.00Hz
          Main Display: Yes
          Mirror: Off
          Online: Yes
          Rotation: Supported
        LKG-J00339:
          Resolution: 3840 x 2160 (2160p/4K UHD 1 - Ultra High Definition)
          UI Looks like: 3840 x 2160 @ 30.00Hz
          Mirror: Off
          Online: Yes
          Rotation: Supported


Installed Packages:
    alabaster: 1.0.0
    appdirs: 1.4.4
    appnope: 0.1.4
    asttokens: 3.0.0
    babel: 2.17.0
    beautifulsoup4: 4.13.3
    biopython: 1.83
    blockdiag: 3.0.0
    blosc2: 3.6.1
    build: 1.2.2.post1
    certifi: 2023.11.17
    cftime: 1.6.4.post1
    charset-normalizer: 3.4.2
    ChimeraX-AddCharge: 1.5.19
    ChimeraX-AddH: 2.2.7
    ChimeraX-AlignmentAlgorithms: 2.0.2
    ChimeraX-AlignmentHdrs: 3.6.1
    ChimeraX-AlignmentMatrices: 2.1
    ChimeraX-Alignments: 2.20.2
    ChimeraX-AlphaFold: 1.0.1
    ChimeraX-AltlocExplorer: 1.1.2
    ChimeraX-AmberInfo: 1.0
    ChimeraX-Aniso: 1.1.4
    ChimeraX-Arrays: 1.1
    ChimeraX-Atomic: 1.60.7
    ChimeraX-AtomicLibrary: 14.1.19
    ChimeraX-AtomSearch: 2.0.1
    ChimeraX-AxesPlanes: 2.4
    ChimeraX-BasicActions: 1.1.3
    ChimeraX-BILD: 1.0
    ChimeraX-BlastProtein: 3.0.0
    ChimeraX-Boltz: 1.0
    ChimeraX-BondRot: 2.0.4
    ChimeraX-BugReporter: 1.0.2
    ChimeraX-BuildStructure: 2.13.1
    ChimeraX-Bumps: 1.0
    ChimeraX-BundleBuilder: 1.5.1
    ChimeraX-ButtonPanel: 1.0.1
    ChimeraX-CageBuilder: 1.0.1
    ChimeraX-CellPack: 1.0
    ChimeraX-Centroids: 1.4
    ChimeraX-ChangeChains: 1.1
    ChimeraX-CheckWaters: 1.5
    ChimeraX-ChemGroup: 2.0.2
    ChimeraX-Clashes: 2.3
    ChimeraX-Clipper: 0.25.2
    ChimeraX-clix: 0.2.4
    ChimeraX-ColorActions: 1.0.5
    ChimeraX-ColorGlobe: 1.0
    ChimeraX-ColorKey: 1.5.8
    ChimeraX-CommandLine: 1.3
    ChimeraX-ConnectStructure: 2.0.1
    ChimeraX-Contacts: 1.0.1
    ChimeraX-Core: 1.10.1
    ChimeraX-CoreFormats: 1.2
    ChimeraX-coulombic: 1.4.5
    ChimeraX-Crosslinks: 1.0
    ChimeraX-Crystal: 1.0
    ChimeraX-CrystalContacts: 1.0.1
    ChimeraX-DataFormats: 1.2.4
    ChimeraX-Dicom: 1.2.7
    ChimeraX-DistMonitor: 1.4.2
    ChimeraX-DockPrep: 1.1.4
    ChimeraX-Dssp: 2.0
    ChimeraX-EMDB-SFF: 1.0
    ChimeraX-ESMFold: 1.0
    ChimeraX-FileHistory: 1.0.1
    ChimeraX-FunctionKey: 1.0.1
    ChimeraX-Geometry: 1.3
    ChimeraX-gltf: 1.0
    ChimeraX-Graphics: 1.4.1
    ChimeraX-Hbonds: 2.5.1
    ChimeraX-Help: 1.3
    ChimeraX-HKCage: 1.3
    ChimeraX-IHM: 1.1
    ChimeraX-ImageFormats: 1.2
    ChimeraX-IMOD: 1.0
    ChimeraX-IO: 1.0.3
    ChimeraX-ISOLDE: 1.10.1
    ChimeraX-ItemsInspection: 1.0.1
    ChimeraX-IUPAC: 1.0
    ChimeraX-KVFinder: 1.6.2
    ChimeraX-Label: 1.1.14
    ChimeraX-ListInfo: 1.2.2
    ChimeraX-LocalResWeight: 0.1
    ChimeraX-Log: 1.2
    ChimeraX-LookingGlass: 1.1
    ChimeraX-LookingGlassBridge: 1.0
    ChimeraX-Maestro: 1.9.1
    ChimeraX-Map: 1.3
    ChimeraX-MapData: 2.0
    ChimeraX-MapEraser: 1.0.1
    ChimeraX-MapFilter: 2.0.1
    ChimeraX-MapFit: 2.0
    ChimeraX-MapSeries: 2.1.1
    ChimeraX-Markers: 1.0.1
    ChimeraX-Mask: 1.0.2
    ChimeraX-MatchMaker: 2.2.2
    ChimeraX-MCopy: 1.0
    ChimeraX-MDcrds: 2.10.1
    ChimeraX-MedicalToolbar: 1.1
    ChimeraX-Meeting: 1.0.1
    ChimeraX-MIC: 0.2
    ChimeraX-MLP: 1.1.1
    ChimeraX-mmCIF: 2.16
    ChimeraX-MMTF: 2.2
    ChimeraX-ModelArchive: 1.0
    ChimeraX-Modeller: 1.5.19
    ChimeraX-ModelPanel: 1.5.1
    ChimeraX-ModelSeries: 1.0.1
    ChimeraX-Mol2: 2.0.3
    ChimeraX-Mole: 1.0
    ChimeraX-Morph: 1.0.2
    ChimeraX-MouseModes: 1.2
    ChimeraX-Movie: 1.0
    ChimeraX-MutationScores: 1.0
    ChimeraX-Neuron: 1.0
    ChimeraX-Nifti: 1.2
    ChimeraX-NMRSTAR: 1.0.2
    ChimeraX-NRRD: 1.2
    ChimeraX-Nucleotides: 2.0.3
    ChimeraX-OpenCommand: 1.14.1
    ChimeraX-OrthoPick: 1.0.1
    ChimeraX-PDB: 2.7.10
    ChimeraX-PDBBio: 1.0.1
    ChimeraX-PDBLibrary: 1.0.4
    ChimeraX-PDBMatrices: 1.0
    ChimeraX-PickBlobs: 1.0.1
    ChimeraX-Positions: 1.0
    ChimeraX-PresetMgr: 1.1.3
    ChimeraX-ProfileGrids: 1.1.3
    ChimeraX-PubChem: 2.2
    ChimeraX-QScore: 1.2
    ChimeraX-ReadPbonds: 1.0.1
    ChimeraX-Registration: 1.1.2
    ChimeraX-RemoteControl: 1.0
    ChimeraX-RenderByAttr: 1.6.3
    ChimeraX-RenumberResidues: 1.1
    ChimeraX-ResidueFit: 1.0.1
    ChimeraX-RestServer: 1.3.1
    ChimeraX-RNALayout: 1.0
    ChimeraX-RotamerLibMgr: 4.0
    ChimeraX-RotamerLibsDunbrack: 2.0
    ChimeraX-RotamerLibsDynameomics: 2.0
    ChimeraX-RotamerLibsRichardson: 2.0
    ChimeraX-SaveCommand: 1.5.1
    ChimeraX-SchemeMgr: 1.0
    ChimeraX-SDF: 2.0.3
    ChimeraX-Segger: 1.0
    ChimeraX-Segment: 1.0.1
    ChimeraX-Segmentations: 3.5.7
    ChimeraX-SelInspector: 1.0
    ChimeraX-SeqView: 2.17.1
    ChimeraX-Shape: 1.1
    ChimeraX-Shell: 1.0.1
    ChimeraX-Shortcuts: 1.2.1
    ChimeraX-ShowSequences: 1.0.3
    ChimeraX-SideView: 1.0.1
    ChimeraX-SimilarStructures: 1.0.1
    ChimeraX-Smiles: 2.1.2
    ChimeraX-SmoothLines: 1.0
    ChimeraX-SpaceNavigator: 1.0
    ChimeraX-StarMap: 1.2.15
    ChimeraX-StdCommands: 1.19.1
    ChimeraX-STL: 1.0.1
    ChimeraX-Storm: 1.0
    ChimeraX-StructMeasure: 1.2.1
    ChimeraX-Struts: 1.0.1
    ChimeraX-Surface: 1.0.1
    ChimeraX-SwapAA: 2.0.1
    ChimeraX-SwapRes: 2.5.2
    ChimeraX-TapeMeasure: 1.0
    ChimeraX-TaskManager: 1.0
    ChimeraX-Test: 1.0
    ChimeraX-Toolbar: 1.2.3
    ChimeraX-ToolshedUtils: 1.2.4
    ChimeraX-Topography: 1.0
    ChimeraX-ToQuest: 1.0
    ChimeraX-Tug: 1.0.1
    ChimeraX-UI: 1.45.2
    ChimeraX-Umap: 1.0
    ChimeraX-uniprot: 2.3.1
    ChimeraX-UnitCell: 1.0.1
    ChimeraX-ViewDockX: 1.4.4
    ChimeraX-VIPERdb: 1.0
    ChimeraX-Vive: 1.1
    ChimeraX-VolumeMenu: 1.0.1
    ChimeraX-vrml: 1.0
    ChimeraX-VTK: 1.0
    ChimeraX-WavefrontOBJ: 1.0
    ChimeraX-WebCam: 1.0.2
    ChimeraX-WebServices: 1.1.5
    ChimeraX-Zone: 1.0.1
    colorama: 0.4.6
    comm: 0.2.2
    contourpy: 1.3.2
    coverage: 7.10.0
    cxservices: 1.2.3
    cycler: 0.12.1
    Cython: 3.0.12
    debugpy: 1.8.15
    decorator: 5.2.1
    DiffFit: 0.7.0
    docutils: 0.21.2
    executing: 2.2.0
    filelock: 3.18.0
    fonttools: 4.59.0
    fsspec: 2025.12.0
    funcparserlib: 2.0.0a0
    glfw: 2.9.0
    grako: 3.16.5
    h5py: 3.14.0
    html2text: 2024.2.26
    idna: 3.10
    ihm: 2.2
    imagecodecs: 2024.6.1
    imagesize: 1.4.1
    iniconfig: 2.1.0
    ipykernel: 6.29.5
    ipython: 8.26.0
    ipywidgets: 8.1.7
    jedi: 0.19.1
    Jinja2: 3.1.6
    joblib: 1.5.3
    jupyter_client: 8.6.3
    jupyter_core: 5.8.1
    jupyterlab_widgets: 3.0.15
    kiwisolver: 1.4.8
    line_profiler: 4.2.0
    lxml: 5.3.1
    lz4: 4.3.2
    MarkupSafe: 3.0.2
    matplotlib: 3.10.1
    matplotlib-inline: 0.1.7
    mmh3: 2.5.1
    mpmath: 1.3.0
    mrcfile: 1.5.0
    msgpack: 1.1.0
    ndindex: 1.10.0
    nest-asyncio: 1.6.0
    netCDF4: 1.6.5
    networkx: 3.3
    nibabel: 5.2.0
    nptyping: 2.5.0
    numexpr: 2.11.0
    numpy: 1.26.4
    OpenMM: 8.2.0
    openvr: 1.26.701
    packaging: 24.2
    pandas: 2.3.3
    ParmEd: 4.2.2
    parso: 0.8.4
    pep517: 0.13.1
    pexpect: 4.9.0
    pickleshare: 0.7.5
    pillow: 10.4.0
    pip: 25.0.1
    pkginfo: 1.11.1
    platformdirs: 4.3.8
    pluggy: 1.6.0
    prompt_toolkit: 3.0.51
    psutil: 7.0.0
    ptyprocess: 0.7.0
    pure_eval: 0.2.3
    py-cpuinfo: 9.0.0
    pycollada: 0.8
    pydicom: 2.4.4
    Pygments: 2.18.0
    pynmrstar: 3.3.5
    pynrrd: 1.0.0
    PyOpenGL: 3.1.9
    PyOpenGL-accelerate: 3.1.9
    pyopenxr: 1.1.4501
    pyparsing: 3.2.3
    pyproject_hooks: 1.2.0
    PyQt6-commercial: 6.8.1
    PyQt6-Qt6: 6.8.2
    PyQt6-WebEngine-commercial: 6.8.0
    PyQt6-WebEngine-Qt6: 6.8.2
    PyQt6_sip: 13.10.0
    pyqtgraph: 0.14.0
    pytest: 8.4.1
    pytest-cov: 6.2.1
    python-dateutil: 2.9.0.post0
    pytz: 2025.2
    pyzmq: 27.0.0
    qtconsole: 5.5.2
    QtPy: 2.4.3
    qtshim: 1.1
    RandomWords: 0.4.0
    requests: 2.32.3
    roman-numerals-py: 3.1.0
    scikit-learn: 1.8.0
    scipy: 1.14.0
    setuptools: 78.1.0
    sfftk-rw: 0.8.1
    simplejson: 3.20.2
    six: 1.16.0
    snowballstemmer: 3.0.1
    sortedcontainers: 2.4.0
    soupsieve: 2.7
    Sphinx: 8.2.3
    sphinx-autodoc-typehints: 3.1.0
    sphinxcontrib-applehelp: 2.0.0
    sphinxcontrib-blockdiag: 3.0.0
    sphinxcontrib-devhelp: 2.0.0
    sphinxcontrib-htmlhelp: 2.1.0
    sphinxcontrib-jsmath: 1.0.1
    sphinxcontrib-qthelp: 2.0.0
    sphinxcontrib-serializinghtml: 2.0.0
    stack-data: 0.6.3
    superqt: 0.7.1
    sympy: 1.14.0
    tables: 3.10.2
    tcia_utils: 1.5.1
    threadpoolctl: 3.6.0
    tifffile: 2025.3.13
    tinyarray: 1.2.4
    torch: 2.2.1
    tornado: 6.5.1
    tqdm: 4.67.1
    traitlets: 5.14.3
    typing_extensions: 4.14.1
    tzdata: 2025.2
    urllib3: 2.5.0
    wcwidth: 0.2.13
    webcolors: 24.11.1
    wheel: 0.45.1
    wheel-filename: 1.4.2
    widgetsnbextension: 4.0.14

[Tom Goddard]

Looking at the code I believe the OpenGL blit is not the problem. The trouble I believe is that the Outline and Silhouette classes in chimerax/graphics/opengl.py create a new framebuffer that holds the outline info and that new framebuffer does not use the viewport of the previous framebuffer. It might be that adding one line of code where the Outline framebuffer viewport gets set to the rendering framebuffer viewport will fix the issue. Here is the line that I think needs to be added for the selection outlines, in site-packages/chimerax/graphics/opengl.py in your distribution in the start_rendering_outline() routine, at line 1981 in current code,

Change this code

def start_rendering_outline(self):

Must call set_outline_depth() before invoking this routine.
r = self._render
fb = r.current_framebuffer()
mfb = self._mask_framebuffer()
r.push_framebuffer(mfb)
...

to

def start_rendering_outline(self):

Must call set_outline_depth() before invoking this routine.
r = self._render
fb = r.current_framebuffer()
mfb = self._mask_framebuffer()
mfb.viewport = fb.viewport
r.push_framebuffer(mfb)
...

where the line

mfb.viewport = fb.viewport

was added. A similar change to the start_silhouette_drawing() routine would be needed for silhouette edges.

I'll let you try this. Although I have an old LookingGlass from about 5 years ago I have not used it in 5 years and this is such an obscure device you are probably the only user. Honestly the resolution was so poor on the device and the poor interaction of the mouse with the display makes this just a curiosity in my opinion. The newer Sony and Asus (and I think Samsung) eye-tracked glasses-free 3D displays I think have much better potential to be useful (I made the mouse work on those displays). But even those displays I think are a technology not ready for ChimeraX use.
