ChimeraX Cellphone Virtual Reality Movies

In addition to interactive rendering in virtual reality, ChimeraX can record 360° immersive movies for playback on virtual reality (VR) headsets. An advantage of movies is that they can be played back on less powerful headsets, even basic cell phone VR headsets such as the Samsumg GearVR. A scene that is too complex to render interactively can be recorded over a longer period of time and encoded into a movie file. A drawback of movies is that the viewer cannot move around in the scene – the movie is recorded from one vantage point that may move, but is not under the viewer's control (although the viewer can look in any direction from that vantage point).

To record a 360° movie in ChimeraX, set the camera mode to a 360° format (for example, with command camera 360sbs). For stereoscopic movies, two eye views are recorded and the image frames for the two eyes are placed side by side (360sbs) or left eye on top of right eye (360tb). There is also a monoscopic 360° format (360), although it does not provide direct depth perception when the movie is played back in a headset. The ChimeraX movie record and movie encode commands are used to record the movie frames and assemble them into a single movie file. Other ChimeraX commands can be used to change the viewpoint, display styles, and colors during recording (see making images and making movies).

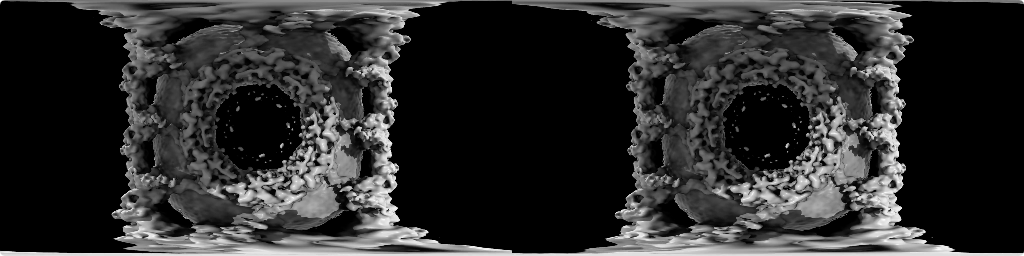

nuclear pore 360-degree view

The following ChimeraX command script (flypore.cxc) loads a density map of the human nuclear pore, sets the camera mode, and records a movie flying through the pore. The data coordinates are in Å, so the commands also use those units. The viewpoint moves 2000 Å (200 nm) towards the pore in increments of 1 Å.

      # Open human nuclear pore density map.
      open 3103 from emdb

      # Set contour level for density map surface
      vol #1 level 2.5

      # Move 1500 Angstroms closer before starting movie
      move z 1500

      # Set stereoscopic side-by-side 360 degree camera mode with eye separation to 25 Angstroms
      camera 360sbs eyeSeparation 25

      # Start capturing movie frames 4800 by 1200 pixels
      movie record size 4800,1200

      # Move into pore with 2000 steps each 1 Angstrom
      move z 1 2000
      wait 2000

      # Write H.264 encoded movie
      movie encode ~/Desktop/flypore.mp4 framerate 90

Movie Details

Movie file (not shown in the ChimeraX browser; copy link to a standard browser to view): flypore.mp4

Movie duration. The movie is 2000 frames at 90 frames per second, for a running time of 22 seconds. It is encoded in H.264 format, and the file size of 27 Mbytes gives a data rate of about 100 Mbytes/minute or 6 Gbytes/hour; however, compression is better than usual because the motion in the movie is very slow. The disk space used by the uncompressed (ppm format) image frames before the movie was encoded was about 33 Gbytes, about 1000x the final size – recording a long movie requires a lot of disk space. Rendering the movie took about 15 minutes, or 30x slower than real time.

Eye separation / physical scale. In recording a stereoscopic (two-eye) movie, it is important to choose an appropriate eye separation in the units of the scene, typically Å. This controls how large and nearby the models will appear in the headset. For the nuclear pore, which is 1000 Å in diameter with a channel diameter of about 500 Å, the script sets the eye separation to 25 Å. Thus, the channel diameter will appear to be 20x (500/25) the actual eye separation. For example, if a viewer's eyes are actually two inches apart, the channel diameter will appear to be 40 inches.

Lighting and shadows. Lighting is problematic in 360° modes. Simple lighting (command light simple) provides one directional light and one fill light, both positioned for viewing along –Z in scene coordinates. When viewed from the opposite direction, models will not have any diffuse or specular lighting highlights, just flat coloring. The same is true of full lighting. With soft lighting (command light soft) ambient lighting from all directions with shadowing is used, but there is no directional light.

Only default model locations. The stereoscopic 360° mode does not work correctly (scene depth is wrong) for models that have been moved within the scene. This is a bug in OpenGL shaders. The mode does work correctly for camera motions (moving the whole scene collectively), as in the above script.

Movie resolution and format. It is desirable to at least match the resolution of the headset. Current headsets have 1200 pixels in the vertical dimension. Recording at a higher resolution can be advantageous because the VR headset distorts the image to correct for lens optics, making some image pixels larger. The width of the side-by-side video should be four times the height. The left- and right-eye images are each an equirectangular projection where longitude angle goes from 0 to 360° along the horizontal axis and latitude angle goes from –90 to 90° along the vertical axis. To make image pixels have equal angular height and width, the movie should have a 4:1 aspect ratio. The ChimeraX graphics window need not have this aspect ratio, as the pixel dimensions can be specified in the movie record command.

Stereoscopic eye positions. The movie includes views from two side-by-side cameras representing a viewer's eyes. In (nonvirtual) reality, eye positions depend on the direction of viewing. Since the movie is recorded without knowing the viewing direction, each vertical strip (meridian) is rendered as if one were looking directly at that strip, with eye-to-eye line perpendicular to view direction. The resulting movie provides good stereoscopic perception when viewed 360° along the equator, although it is strictly only correct at the central vertical strip in the field of view. The north- and south-pole directions (where the meridians meet) will not provide good stereoscopic depth perception.

Movie frame rate. To minimize flickering during fast object motion, it is best to encode the movie for playback at a frame rate matching that of the headset, 90 frames per second with current VR headsets.
